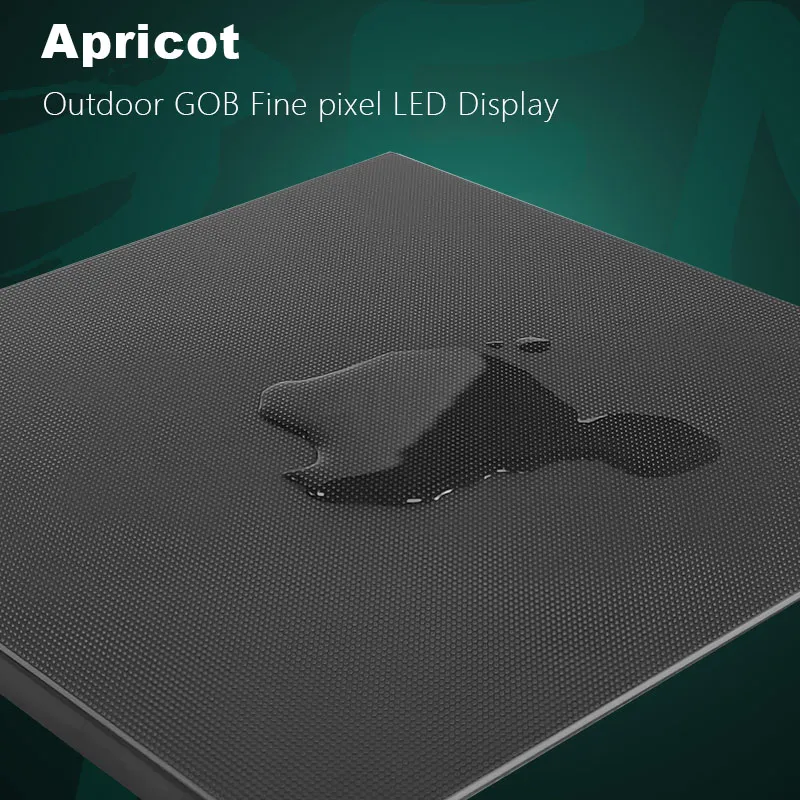

Outdoor GOB Fine Pixel LED Display

Outdoor GOB Fine Pixel LED Display

Adopting the latest GOB packaging technology to achieve fine pixel pitch of outdoor LED displays. Solved the problems of product weather resistance, moisture resistance, waterproof, dustproof, impact resistance, collision resistance, anti-static, oxidation resistance, lamp bead heat dissipation, blue light radiation resistance, UV resistance, etc.

  • Pixel Pitch :

    1.25mm, 1.56mm, 1.95mm, 2.6mm (GOB)

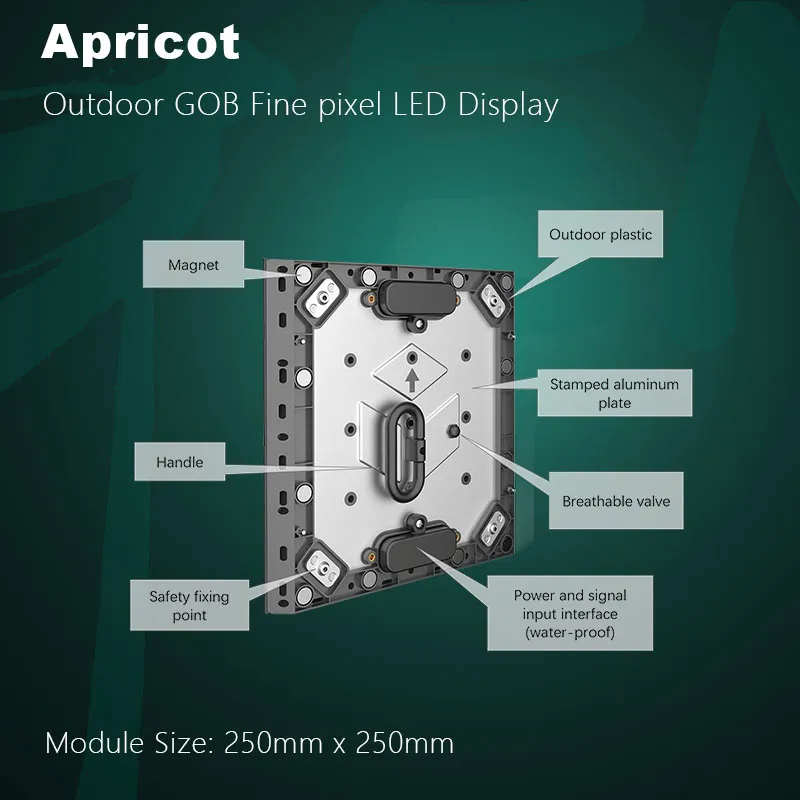

  • Module Dimensions :

    250mm x 250mm

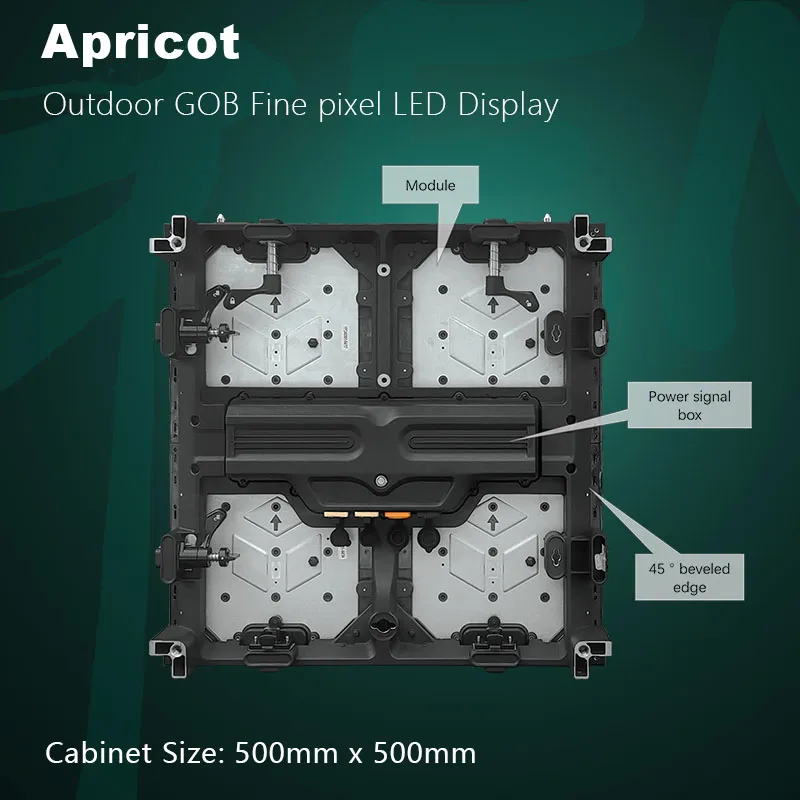

  • Cabinet Dimensions :

    500mm x 500mm

  • Brightness :

    4000 nit

  • Max. consumption :

    580 w/m2

  • Ingress Protection :

    IP66 front / IP66 rear

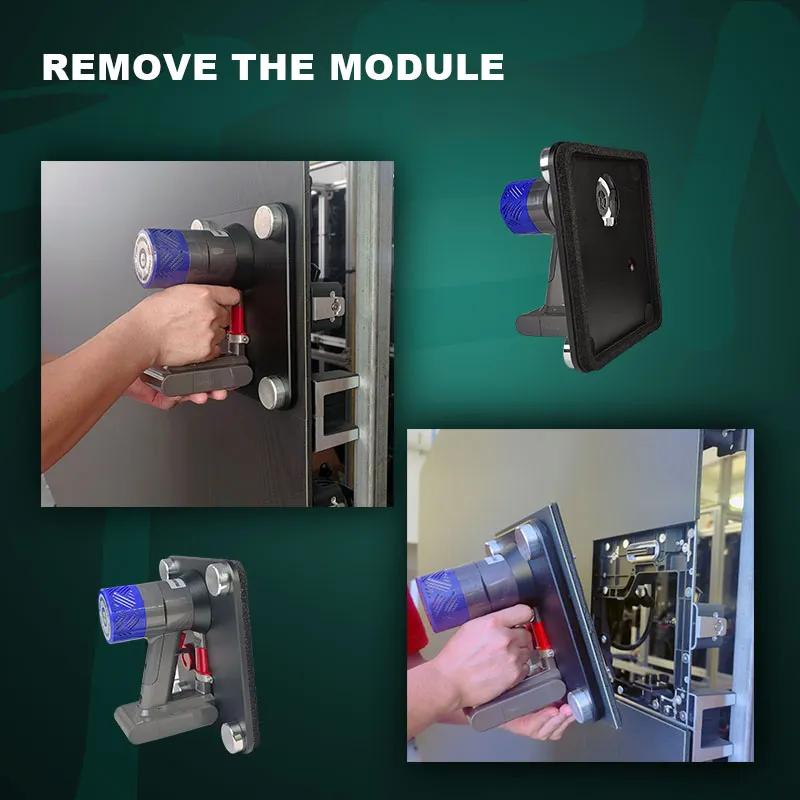

  • Service :

    Front / Rear installation, Front / Rear Service
Categories
Contacts
The pursuit of quality
  sales@gemopto.com   86-755-27316756 Looking forward to your contact! Contact Us
  • Product Details

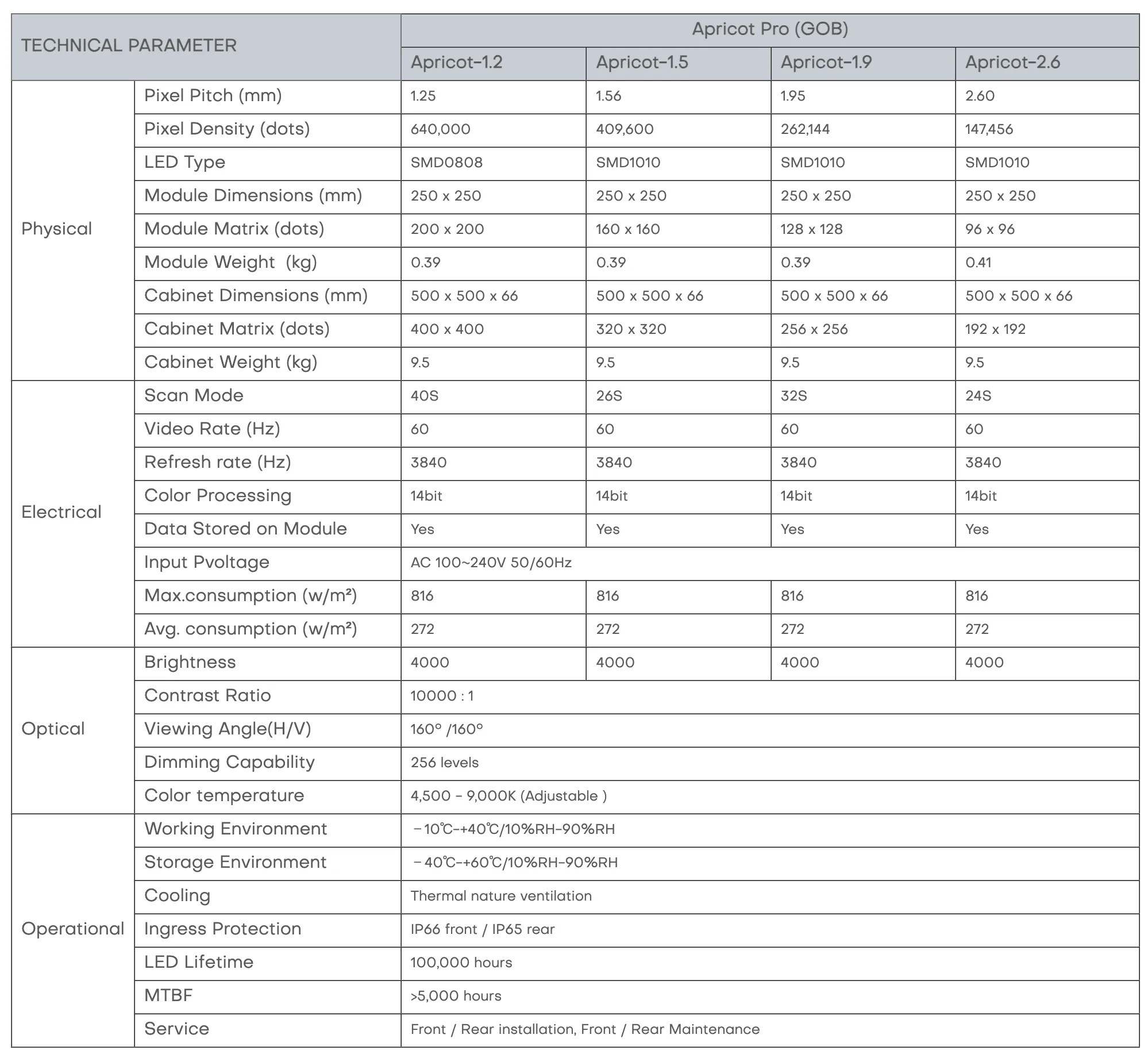

  • Specifications

Adopting the latest GOB packaging technology to achieve fine pixel pitch of outdoor LED displays. Solved the problems of product weather resistance, moisture resistance, waterproof, dustproof, impact resistance, collision resistance, anti-static, oxidation resistance, lamp bead heat dissipation, blue light radiation resistance, UV resistance, etc.
